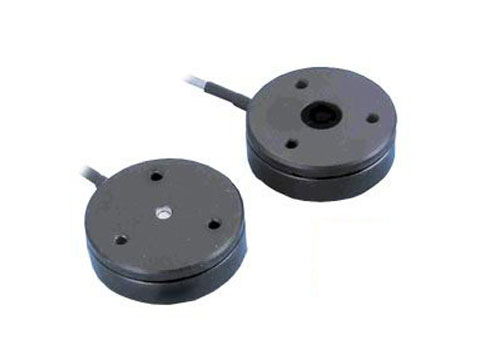

High Speed Piezo Phase Shifters with Direct Metrology Option


Check up to five results to perform an action.

  • 25 kHz Resonant Frequency for Sub-Millisecond Dynamics
  • <0.1 Nanometer Resolution
  • Capacitive Sensor Option for Highest Linearity and Stability
  • Invar Option for Highest Thermal Stability
  • Aperture with Open-Loop Versions
  • 3 µm Travel Range
  • Compact Size : 30 mm Diameter x 10 mm



Compare Items

  Results 1 - 2 of 2 1

Item #

Item Name

Active Axes

Closed Loop Linearity

Open Loop Resolution

Max. Normal Load

Travel Range

Integrated Feedback Sensor

Unloaded Resonant Frequency
S-303.CDx High Speed Piezo Phase Shifters with Direct Metrology Option Z 0.03 % 0.03 nm 0.5 N 3 µm Capacitive 25.00 kHz
S-303.0Lx High Speed Piezo Phase Shifters with Direct Metrology Option Z N/A 0.03 nm 0.5 N 3 µm N/A 25.00 kHz
  Results 1 - 2 of 2 1
