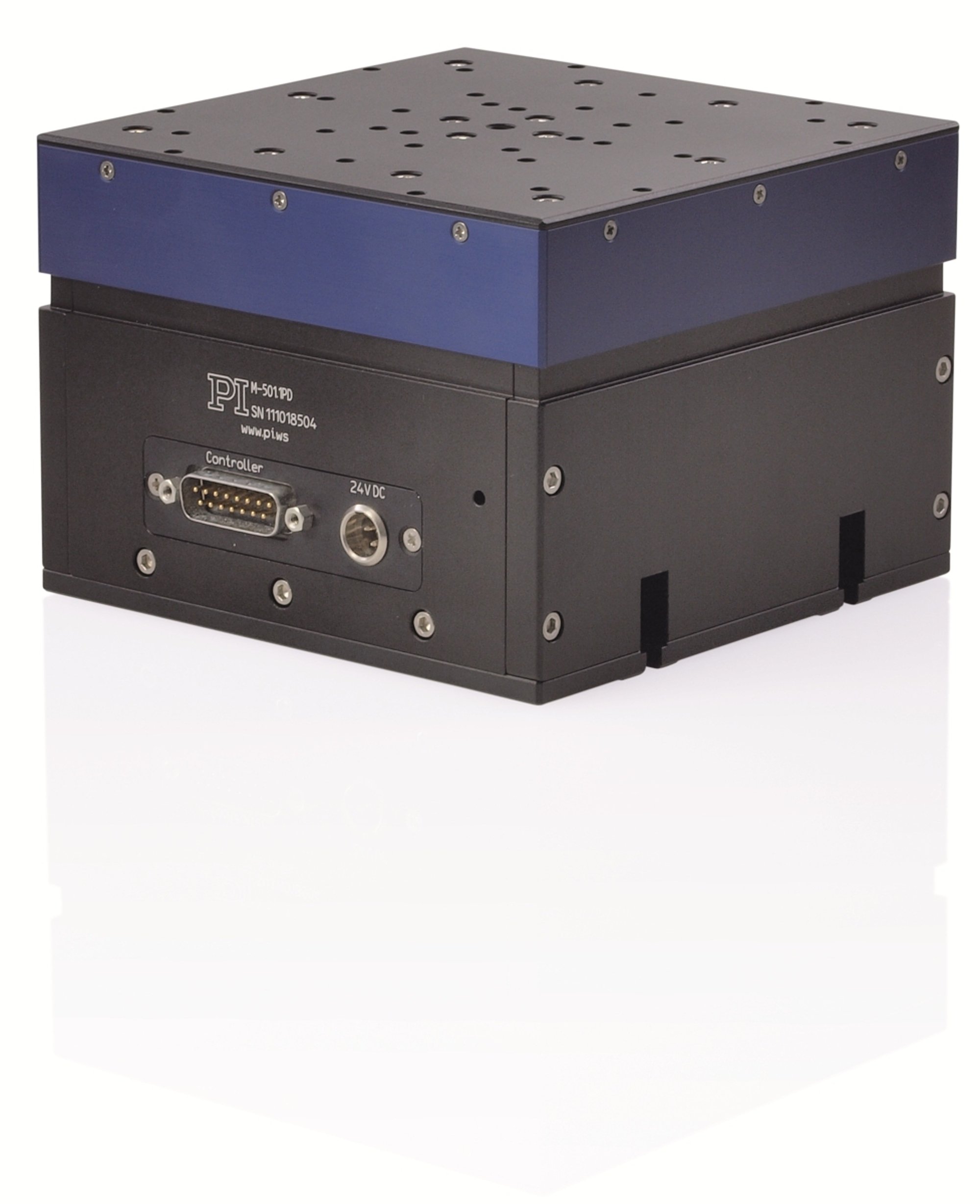

  • Product Image - Vertical Micropositioning Stage
  • Travel Range 12.5 mm (1/2")
  • Ultra-High-Resolution Encoder
  • ActiveDrive™ Motor
  • Compatible with Leading Industrial Motion Controllers
  • Stress-Relieved Aluminum Stage Base for Highest Stability
  • Zero-Backlash Recirculating Ballscrews
  • Non-Contact Origin and Limit Switches
  • >20,000 Hours MTBF
1 - 2 of 2 | Results Per Page | View | Unit of Measure
1
Request Information

Item #

Item Name

Travel Range

Design Resolution

Min. Incremental Motion

Unidirectional Repeatability

Max. Load

Max. Speed

Ballscrew Pitch

Click Link for More Information

N/A Vertical Linear Translation Stage N/A 12.5 mm1/2 in N/A 0.024 µm N/A 0.1 µm N/A 0.1 µm N/A 5.0 kg N/A 12 mm/s N/A 1 mm/rev N/A Specifications, CAD / Drawings, Manuals, Videos
N/A Vertical Linear Translation Stage N/A 12.5 mm1/2 in N/A 0.005 µm N/A 0.1 µm N/A 0.1 µm N/A 10.0 kg N/A 1.0 mm/s N/A 1 mm/rev N/A Specifications, CAD / Drawings, Manuals, Videos
