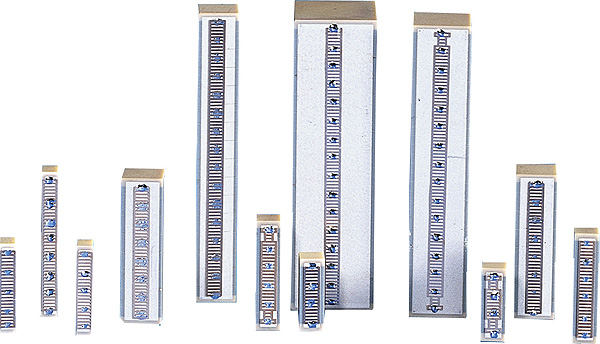

PICMA® High-Performance Monolithic Multilayer Piezo Stack Actuators (PZT)
Piezoelectric Transducers, Actuators & Tubes with No Casing
- Award-Winning Ceramic-Encapsulation PZT Technology
- Low Operating Voltage
- Superior Lifetime Even Under Extreme Conditions
- Very Large Operating-Temperature Range
- High Humidity Resistance
- Excellent Temperature Stability
- High Stiffness
- UHV Compatible to 10-9 hPa
- Sub-Millisecond Response & Sub-Nanometer Resolution
1 2
Item # |
Item Name |
Travel Range |
Nominal Travel Range |
Electrical Capacitance |
Unloaded Resonant Frequency |
Dimensions A x B x L |
Click Link for More Information |
---|---|---|---|---|---|---|---|
P-882.10 /Asset/pi_pic_picma_termina3_i4c_o.jpg | N/A PICMA® High-Performance Monolithic Multilayer Piezo Stack Actuators (PZT) | Travel Range N/A 8 µm | Nominal Travel Range N/A 6.5 µm ±20% | Electrical Capacitance N/A 0.13 µF ±20% | Unloaded Resonant Frequency N/A 135 kHz | Dimensions A x B x L N/A 2 x 3 x 9 mm |
Click Link for More Information
N/A Specifications, CAD / Drawings, Manuals, Videos |
P-882.20 /Asset/pi_pic_picma_termina3_i4c_o.jpg | N/A PICMA® High-Performance Monolithic Multilayer Piezo Stack Actuators (PZT) | Travel Range N/A 10.5 µm | Nominal Travel Range N/A 8.5 µm ±20% | Electrical Capacitance N/A 0.18 µF ±20% | Unloaded Resonant Frequency N/A 110 kHz | Dimensions A x B x L N/A 2 x 3 x11 mm |
Click Link for More Information
N/A Specifications, CAD / Drawings, Manuals, Videos |
P-882.30 /Asset/pi_pic_picma_termina3_i4c_o.jpg | N/A PICMA® High-Performance Monolithic Multilayer Piezo Stack Actuators (PZT) | Travel Range N/A 13 µm | Nominal Travel Range N/A 11 µm ±20% | Electrical Capacitance N/A 0.22 µF ±20% | Unloaded Resonant Frequency N/A 90 kHz | Dimensions A x B x L N/A 2 x 3 x 13.5 mm |
Click Link for More Information
N/A Specifications, CAD / Drawings, Manuals, Videos |
P-882.50 /Asset/pi_pic_picma_termina3_i4c_o.jpg | N/A PICMA® High-Performance Monolithic Multilayer Piezo Stack Actuators (PZT) | Travel Range N/A 18 µm | Nominal Travel Range N/A 15 µm ±10% | Electrical Capacitance N/A 0.31 µF ±20% | Unloaded Resonant Frequency N/A 70 kHz | Dimensions A x B x L N/A 2 x 3 x 18 mm |
Click Link for More Information
N/A Specifications, CAD / Drawings, Manuals, Videos |
P-883.10 /Asset/pi_pic_picma_termina3_i4c_o.jpg | N/A PICMA® High-Performance Monolithic Multilayer Piezo Stack Actuators (PZT) | Travel Range N/A 8 µm | Nominal Travel Range N/A 6.5 µm ±20% | Electrical Capacitance N/A 0.21 µF ±20% | Unloaded Resonant Frequency N/A 135 kHz | Dimensions A x B x L N/A 3 x 3 x 9 mm |
Click Link for More Information
N/A Specifications, CAD / Drawings, Manuals, Videos |
P-883.20 /Asset/pi_pic_picma_termina3_i4c_o.jpg | N/A PICMA® High-Performance Monolithic Multilayer Piezo Stack Actuators (PZT) | Travel Range N/A 10.5 µm | Nominal Travel Range N/A 8.5 µm ±20% | Electrical Capacitance N/A 0.27 µF ±20% | Unloaded Resonant Frequency N/A 110 kHz | Dimensions A x B x L N/A 3 x 3 x 11 mm |
Click Link for More Information
N/A Specifications, CAD / Drawings, Manuals, Videos |
P-883.30 /Asset/pi_pic_picma_termina3_i4c_o.jpg | N/A PICMA® High-Performance Monolithic Multilayer Piezo Stack Actuators (PZT) | Travel Range N/A 13 µm | Nominal Travel Range N/A 11 µm ±20% | Electrical Capacitance N/A 0.35 µF ±20% | Unloaded Resonant Frequency N/A 90 kHz | Dimensions A x B x L N/A 3 x 3 x 13.5 mm |
Click Link for More Information
N/A Specifications, CAD / Drawings, Manuals, Videos |
P-883.50 /Asset/pi_pic_picma_termina3_i4c_o.jpg | N/A PICMA® High-Performance Monolithic Multilayer Piezo Stack Actuators (PZT) | Travel Range N/A 18 µm | Nominal Travel Range N/A 15 µm ±10% | Electrical Capacitance N/A 0.48 µF ±20% | Unloaded Resonant Frequency N/A 70 kHz | Dimensions A x B x L N/A 3 x 3 x 18 mm |
Click Link for More Information
N/A Specifications, CAD / Drawings, Manuals, Videos |
P-885.10 /Asset/pi_pic_picma_termina3_i4c_o.jpg | N/A PICMA® High-Performance Monolithic Multilayer Piezo Stack Actuators (PZT) | Travel Range N/A 8 µm | Nominal Travel Range N/A 6.5 µm ±20% | Electrical Capacitance N/A 0.6 µF ±20% | Unloaded Resonant Frequency N/A 135 kHz | Dimensions A x B x L N/A 5 x 5 x 9 mm |
Click Link for More Information
N/A Specifications, CAD / Drawings, Manuals, Videos |
P-885.20 /Asset/pi_pic_picma_termina3_i4c_o.jpg | N/A PICMA® High-Performance Monolithic Multilayer Piezo Stack Actuators (PZT) | Travel Range N/A 10.5 µm | Nominal Travel Range N/A 8.5 µm ±20% | Electrical Capacitance N/A 0.8 µF ±20% | Unloaded Resonant Frequency N/A 110 kHz | Dimensions A x B x L N/A 5 x 5 x 11 mm |
Click Link for More Information
N/A Specifications, CAD / Drawings, Manuals, Videos |
P-885.30 /Asset/pi_pic_picma_termina3_i4c_o.jpg | N/A PICMA® High-Performance Monolithic Multilayer Piezo Stack Actuators (PZT) | Travel Range N/A 13 µm | Nominal Travel Range N/A 11 µm ±20% | Electrical Capacitance N/A 1.1 µF ±20% | Unloaded Resonant Frequency N/A 90 kHz | Dimensions A x B x L N/A 5 x 5 x 13.5 mm |
Click Link for More Information
N/A Specifications, CAD / Drawings, Manuals, Videos |
P-885.50 /Asset/pi_pic_picma_termina3_i4c_o.jpg | N/A PICMA® High-Performance Monolithic Multilayer Piezo Stack Actuators (PZT) | Travel Range N/A 18 µm | Nominal Travel Range N/A 15 µm ±10% | Electrical Capacitance N/A 1.5 µF ±20% | Unloaded Resonant Frequency N/A 70 kHz | Dimensions A x B x L N/A 5 x 5 x 18 mm |
Click Link for More Information
N/A Specifications, CAD / Drawings, Manuals, Videos |
P-885.90 /Asset/pi_pic_picma_termina3_i4c_o.jpg | N/A PICMA® High-Performance Monolithic Multilayer Piezo Stack Actuators (PZT) | Travel Range N/A 38 µm | Nominal Travel Range N/A 32 µm ±10% | Electrical Capacitance N/A 3.1 µF ±20% | Unloaded Resonant Frequency N/A 40 kHz | Dimensions A x B x L N/A 5 x 5 x 36 mm |
Click Link for More Information
N/A Specifications, CAD / Drawings, Manuals, Videos |
P-887.30 /Asset/pi_pic_picma_termina3_i4c_o.jpg | N/A PICMA® High-Performance Monolithic Multilayer Piezo Stack Actuators (PZT) | Travel Range N/A 13 µm | Nominal Travel Range N/A 11 µm ±20% | Electrical Capacitance N/A 2.2 µF ±20% | Unloaded Resonant Frequency N/A 90 kHz | Dimensions A x B x L N/A 7 x 7 x 13.5 mm |
Click Link for More Information
N/A Specifications, CAD / Drawings, Manuals, Videos |
P-887.50 /Asset/pi_pic_picma_termina3_i4c_o.jpg | N/A PICMA® High-Performance Monolithic Multilayer Piezo Stack Actuators (PZT) | Travel Range N/A 18 µm | Nominal Travel Range N/A 15 µm ±10% | Electrical Capacitance N/A 3.1 µF ±20% | Unloaded Resonant Frequency N/A 70 kHz | Dimensions A x B x L N/A 7 x 7 x 18 mm |
Click Link for More Information
N/A Specifications, CAD / Drawings, Manuals, Videos |
P-887.90 /Asset/pi_pic_picma_termina3_i4c_o.jpg | N/A PICMA® High-Performance Monolithic Multilayer Piezo Stack Actuators (PZT) | Travel Range N/A 38 µm | Nominal Travel Range N/A 32 µm ±10% | Electrical Capacitance N/A 6.4 µF ±20% | Unloaded Resonant Frequency N/A 40 kHz | Dimensions A x B x L N/A 7 x 7 x 36 mm |
Click Link for More Information
N/A Specifications, CAD / Drawings, Manuals, Videos |
P-888.30 /Asset/pi_pic_picma_termina3_i4c_o.jpg | N/A PICMA® High-Performance Monolithic Multilayer Piezo Stack Actuators (PZT) | Travel Range N/A 13 µm | Nominal Travel Range N/A 11 µm ±20% | Electrical Capacitance N/A 4.3 µF ±20% | Unloaded Resonant Frequency N/A 90 kHz | Dimensions A x B x L N/A 10 x 10 x 13.5 mm |
Click Link for More Information
N/A Specifications, CAD / Drawings, Manuals, Videos |
P-888.50 /Asset/pi_pic_picma_termina3_i4c_o.jpg | N/A PICMA® High-Performance Monolithic Multilayer Piezo Stack Actuators (PZT) | Travel Range N/A 18 µm | Nominal Travel Range N/A 15 µm ±10% | Electrical Capacitance N/A 6.0 µF ±20% | Unloaded Resonant Frequency N/A 70 kHz | Dimensions A x B x L N/A 10 x 10 x 18 mm |
Click Link for More Information
N/A Specifications, CAD / Drawings, Manuals, Videos |
P-888.90 /Asset/pi_pic_picma_termina3_i4c_o.jpg | N/A PICMA® High-Performance Monolithic Multilayer Piezo Stack Actuators (PZT) | Travel Range N/A 38 µm | Nominal Travel Range N/A 32 µm ±10% | Electrical Capacitance N/A 13.0 µF ±20% | Unloaded Resonant Frequency N/A 40 kHz | Dimensions A x B x L N/A 10 x 10 x 36 mm |
Click Link for More Information
N/A Specifications, CAD / Drawings, Manuals, Videos |
P-882.11 /Asset/pi_pic_picma_termina3_i4c_o.jpg | N/A PICMA® High-Performance Monolithic Multilayer Piezo Stack Actuators (PZT) | Travel Range N/A 8 µm | Nominal Travel Range N/A 6.5 µm ±20% | Electrical Capacitance N/A 0.13 µF ±20% | Unloaded Resonant Frequency N/A 135 kHz | Dimensions A x B x L N/A 2 x 3 x 9 mm |
Click Link for More Information
N/A Specifications, CAD / Drawings, Manuals, Videos |
P-882.21 /Asset/pi_pic_picma_termina3_i4c_o.jpg | N/A PICMA® High-Performance Monolithic Multilayer Piezo Stack Actuators (PZT) | Travel Range N/A 10.5 µm | Nominal Travel Range N/A 8.5 µm ±20% | Electrical Capacitance N/A 0.18 µF ±20% | Unloaded Resonant Frequency N/A 110 kHz | Dimensions A x B x L N/A 2 x 3 x11 mm |
Click Link for More Information
N/A Specifications, CAD / Drawings, Manuals, Videos |
P-882.31 /Asset/pi_pic_picma_termina3_i4c_o.jpg | N/A PICMA® High-Performance Monolithic Multilayer Piezo Stack Actuators (PZT) | Travel Range N/A 13 µm | Nominal Travel Range N/A 11 µm ±20% | Electrical Capacitance N/A 0.22 µF ±20% | Unloaded Resonant Frequency N/A 90 kHz | Dimensions A x B x L N/A 2 x 3 x 13.5 mm |
Click Link for More Information
N/A Specifications, CAD / Drawings, Manuals, Videos |
P-882.51 /Asset/pi_pic_picma_termina3_i4c_o.jpg | N/A PICMA® High-Performance Monolithic Multilayer Piezo Stack Actuators (PZT) | Travel Range N/A 18 µm | Nominal Travel Range N/A 15 µm ±10% | Electrical Capacitance N/A 0.31 µF ±20% | Unloaded Resonant Frequency N/A 70 kHz | Dimensions A x B x L N/A 2 x 3 x 18 mm |
Click Link for More Information
N/A Specifications, CAD / Drawings, Manuals, Videos |
P-883.11 /Asset/pi_pic_picma_termina3_i4c_o.jpg | N/A PICMA® High-Performance Monolithic Multilayer Piezo Stack Actuators (PZT) | Travel Range N/A 8 µm | Nominal Travel Range N/A 6.5 µm ±20% | Electrical Capacitance N/A 0.21 µF ±20% | Unloaded Resonant Frequency N/A 135 kHz | Dimensions A x B x L N/A 3 x 3 x 9 mm |
Click Link for More Information
N/A Specifications, CAD / Drawings, Manuals, Videos |
P-883.21 /Asset/pi_pic_picma_termina3_i4c_o.jpg | N/A PICMA® High-Performance Monolithic Multilayer Piezo Stack Actuators (PZT) | Travel Range N/A 10.5 µm | Nominal Travel Range N/A 8.5 µm ±20% | Electrical Capacitance N/A 0.27 µF ±20% | Unloaded Resonant Frequency N/A 110 kHz | Dimensions A x B x L N/A 3 x 3 x 11 mm |
Click Link for More Information
N/A Specifications, CAD / Drawings, Manuals, Videos |
