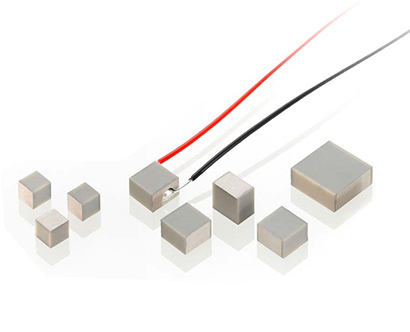

PICMA™ Chip Monolithic Multilayer Piezo Chip Actuators (PZT)
Piezoelectric Transducers, Actuators & Tubes with No Casing
- Ceramic Encapsulation for Extended Lifetime
- Ultra-Compact, from 2 x 2 x 2 mm
- High Curie Temperature
- Ideal for Dynamic Operation
- Sub-Millisecond Response / Sub-Nanometer Resolution
- UHV Compatible to 10-9 hPa
- Superior Lifetime
Item # |
Item Name |
Travel Range |
Dimensions A x B x TH |
Blocking Force |
Electrical Capacitance |
Unloaded Resonant Frequency |
Click Link for More Information |
---|---|---|---|---|---|---|---|
PL022.30 /Asset/pi_chips2_i4c_o.jpg | N/A PICMA™ Chip Monolithic Multilayer Piezo Chip Actuators (PZT) | Travel Range N/A 2.2 µm | Dimensions A x B x TH N/A 2 x 2 x 2 mm | Blocking Force N/A > 250 N | Electrical Capacitance N/A 25 nF ±20% | Unloaded Resonant Frequency N/A 300 kHz |
Click Link for More Information
N/A Specifications, CAD / Drawings, Manuals, Videos |
PL033.30 /Asset/pi_chips2_i4c_o.jpg | N/A PICMA™ Chip Monolithic Multilayer Piezo Chip Actuators (PZT) | Travel Range N/A 2.2 µm | Dimensions A x B x TH N/A 3 x 3 x 2 mm | Blocking Force N/A > 300 N | Electrical Capacitance N/A 50 nF ±20% | Unloaded Resonant Frequency N/A 300 kHz |
Click Link for More Information
N/A Specifications, CAD / Drawings, Manuals, Videos |
PL055.30 /Asset/pi_chips2_i4c_o.jpg | N/A PICMA™ Chip Monolithic Multilayer Piezo Chip Actuators (PZT) | Travel Range N/A 2.2 µm | Dimensions A x B x TH N/A 5 x 5 x 2 mm | Blocking Force N/A > 500 N | Electrical Capacitance N/A 250 nF ±20% | Unloaded Resonant Frequency N/A 300 kHz |
Click Link for More Information
N/A Specifications, CAD / Drawings, Manuals, Videos |
PL022.31 /Asset/pi_chips2_i4c_o.jpg | N/A PICMA™ Chip Monolithic Multilayer Piezo Chip Actuators (PZT) | Travel Range N/A 2.2 µm | Dimensions A x B x TH N/A 2 x 2 x 2 mm | Blocking Force N/A > 250 N | Electrical Capacitance N/A 25 nF ±20% | Unloaded Resonant Frequency N/A 300 kHz |
Click Link for More Information
N/A Specifications, CAD / Drawings, Manuals, Videos |
PL033.31 /Asset/pi_chips2_i4c_o.jpg | N/A PICMA™ Chip Monolithic Multilayer Piezo Chip Actuators (PZT) | Travel Range N/A 2.2 µm | Dimensions A x B x TH N/A 3 x 3 x 2 mm | Blocking Force N/A > 300 N | Electrical Capacitance N/A 50 nF ±20% | Unloaded Resonant Frequency N/A 300 kHz |
Click Link for More Information
N/A Specifications, CAD / Drawings, Manuals, Videos |
PL055.31 /Asset/pi_chips2_i4c_o.jpg | N/A PICMA™ Chip Monolithic Multilayer Piezo Chip Actuators (PZT) | Travel Range N/A 2.2 µm | Dimensions A x B x TH N/A 5 x 5 x 2 mm | Blocking Force N/A > 500 N | Electrical Capacitance N/A 250 nF ±20% | Unloaded Resonant Frequency N/A 300 kHz |
Click Link for More Information
N/A Specifications, CAD / Drawings, Manuals, Videos |
