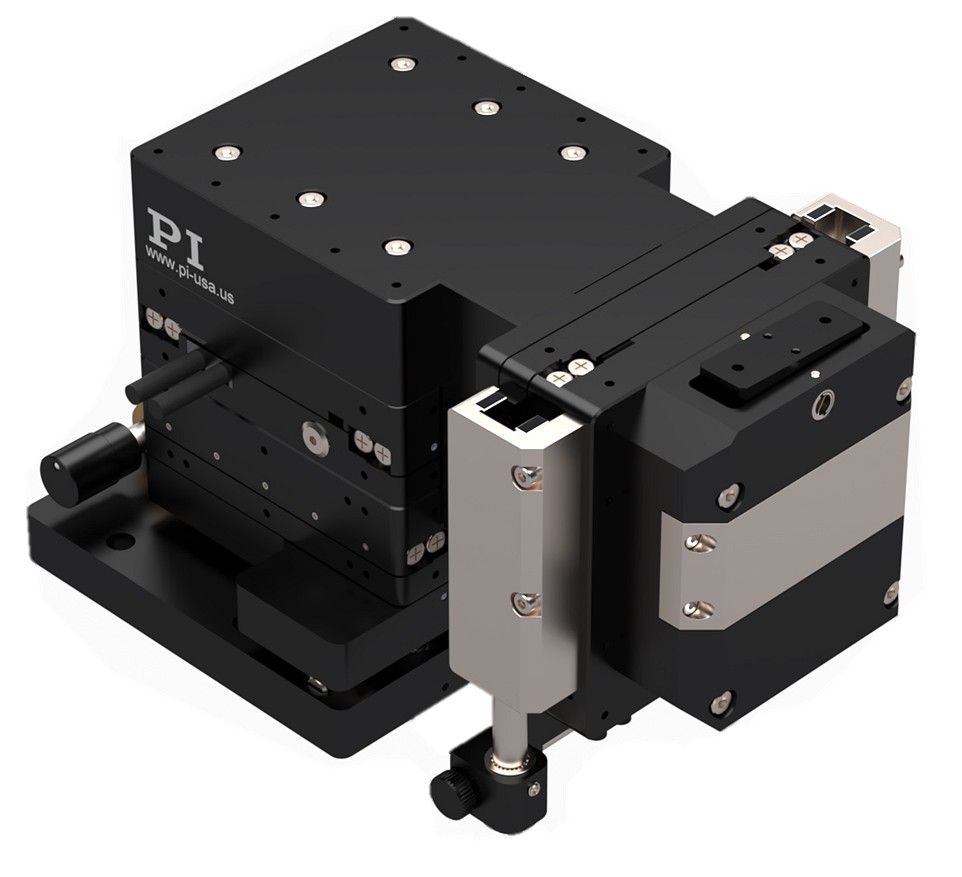

  • F-141 Fast Multi-Axis Fiber Alignment Stage
  • Ideal for array alignment of photonic components
  • Single and dual-sided configurations
  • Compact 4-DOF/6-DOF photonics scan & alignment system for high dynamics & duty cycle. 2- & 3-axis configurations also available.
  • Optimized moving platform provides convenient mounting with minimal lever arm for direct optical probe
  • Embedded PI proprietary alignment algorithms provide industry-leading alignment speed – up to 100X faster
  • Advanced EtherCAT® control system with computationally optimized master processor providing rapid signal analysis for onboard machine learning
  • 40mm XYZ travel range, 12° Theta-Y rotation range
  • Optional manually adjustable Theta-X/Z base, 5° travel
  • Load capacity 1 kg;  Size: 115x175x105mm (L/W/H)
1 - 1 of 1 | Results Per Page | View | Unit of Measure
1
Request Information

Item #

Item Name

Travel Range θx

Travel Range θy

Travel Range θz

Actuator Resolution

Bidirectional Repeatability X, Y, Z

Max. Speed

Max. Load in Z (Centered on Platform)

Click Link for More Information

N/A Compact Fast Alignment System for Photonics and Fiber Optics, F-141 NovAlign N/A N/A N/A N/A N/A N/A N/A N/A Specifications, CAD / Drawings, Manuals, Videos
