 All Categories    High-Resolution Micro-Translation Stages with Ballscrew Drive
All Categories > Micropositioning:
Motorized Stages, Hexapods, Controllers
> Micropositioning Actuators / Stages > Linear Translation Stages > High-Resolution Micro-Translation Stages with Ballscrew Drive > View Items

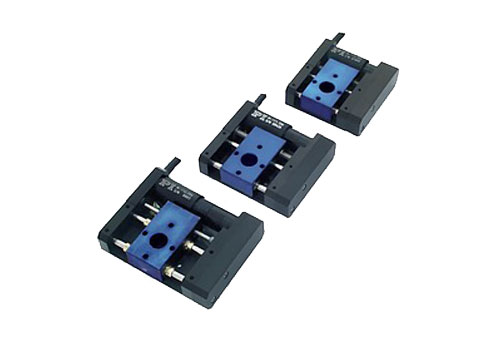

High-Resolution Micro-Translation Stages with Ballscrew Drive

Check up to five results to perform an action.

  • 5 to 25 mm Travel Ranges
  • 5000 h MTBF
  • Very Cost Effective
  • 200 nm Minimum Inc. Motion
  • Hall - Effect Limit & Reference Switches
  • Recirculating Ballscrew for Extended Lifetime


Search Items



    border="0" Printable Page
    Email Email This Page
    Save To Favorites Save To Favorites

Compare Items

  Results 1 - 6 of 6 1

Item #

Item Name

Travel Range

Min. Incremental Motion

Max. Load

Max. Speed

Design Resolution

Unidirectional Repeatability

M-110.2DG High-Resolution Micro-Translation Stages with Ballscrew Drive 5 mm 0.2 µm 5.0 kg 1.5 mm/s 0.0085 µm 0.5 µm
M-111.2DG High-Resolution Micro-Translation Stages with Ballscrew Drive 15 mm 0.2 µm 5.0 kg 2.0 mm/s 0.0085 µm 0.5 µm
M-112.2DG High-Resolution Micro-Translation Stages with Ballscrew Drive 25 mm 0.2 µm 3.0 kg 2.0 mm/s 0.0085 µm 0.5 µm
M-110.22S High-Resolution Micro-Translation Stages with Ballscrew Drive 5 mm 0.2 µm 5.0 kg 1.0 mm/s 0.014 µm 0.5 µm
M-111.22S High-Resolution Micro-Translation Stages with Ballscrew Drive 15 mm 0.2 µm 5.0 kg 1.0 mm/s 0.014 µm 0.5 µm
M-112.22S High-Resolution Micro-Translation Stages with Ballscrew Drive 25 mm 0.2 µm 3.0 kg 1.0 mm/s 0.014 µm 0.5 µm
  Results 1 - 6 of 6 1
