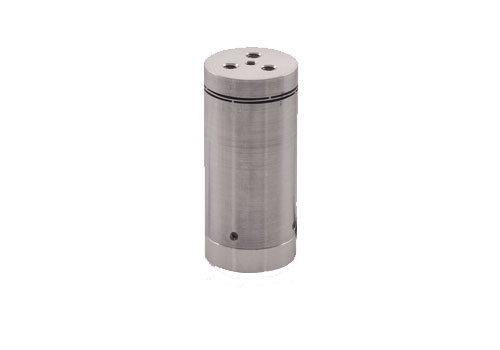

High-Speed Piezo Tip/Tilt Platform and Z Positioner

Check up to five results to perform an action.

  • Piezo Tripod Design Allows Z Motion and Tilt
  • 10 mrad Optical Beam Deflection
  • Piston Movement up to 30 µm
  • Closed-Loop Versions for Better Linearity
  • For Mirrors up to 25 mm (1 inches) Diameter
  • Zero Friction Flexure Guides Single-Moving-Platform, Parallel-Kinematics Design: Equal Dynamics for all Axes, Better Linearity & Temperature Stability





    border="0" Printable Page
    Email Email This Page
    Save To Favorites Save To Favorites

Compare Items

  Results 1 - 2 of 2 1

Item #

Item Name

Active Axes

Closed Loop Resolution

Open Loop Tilt Angle

Integrated Feedback Sensor

Closed Loop Tilt Angle

Open Loop Resolution

Unloaded Resonant Frequency

S-325.30L High-Speed Piezo Tip/Tilt Platform and Z Positioner Z
θX

θY
N/A 5 mrad N/A N/A N/A 2 kHz
S-325.3SL High-Speed Piezo Tip/Tilt Platform and Z Positioner Z
θX

θY
1.00 nm 5 mrad Strain Gauge Sensor 4.0 mrad 0.10 µrad 2 kHz
  Results 1 - 2 of 2 1
