Ultra-Compact, High-Accuracy Translation Stages

Check up to five results to perform an action.

  • Integrated Linear-Scale Encoders for Highest Accuracy
  • Travel Ranges 25 mm (1") and 50 mm (2")
  • Velocity up to 50 mm/sec.
  • Active Drive™ Motors
  • Compatible with Leading Industrial Motion Controllers
  • Stress-Relieved Aluminum Stage Base for Highest Stability
  • Zero-Backlash Recirculating Ballscrews
  • Non-Contact, Direction-Sensing Origin Switch
  • Non-Contact Limit Switches
  • Load Capacity 20 kg
  • >20,000 Hours MTBF




    border="0" Printable Page
    Email Email This Page
    Save To Favorites Save To Favorites

Compare Items

  Results 1 - 2 of 2 1

Item #

Item Name

Travel Range

Min. Incremental Motion

Max. Load

Max. Speed

Design Resolution

Unidirectional Repeatability

M-605.1DD Ultra-Compact, High-Accuracy Translation Stages 25 mm 0.1 µm 30.0 kg 50 mm/s 0.1 µm 0.1 µm

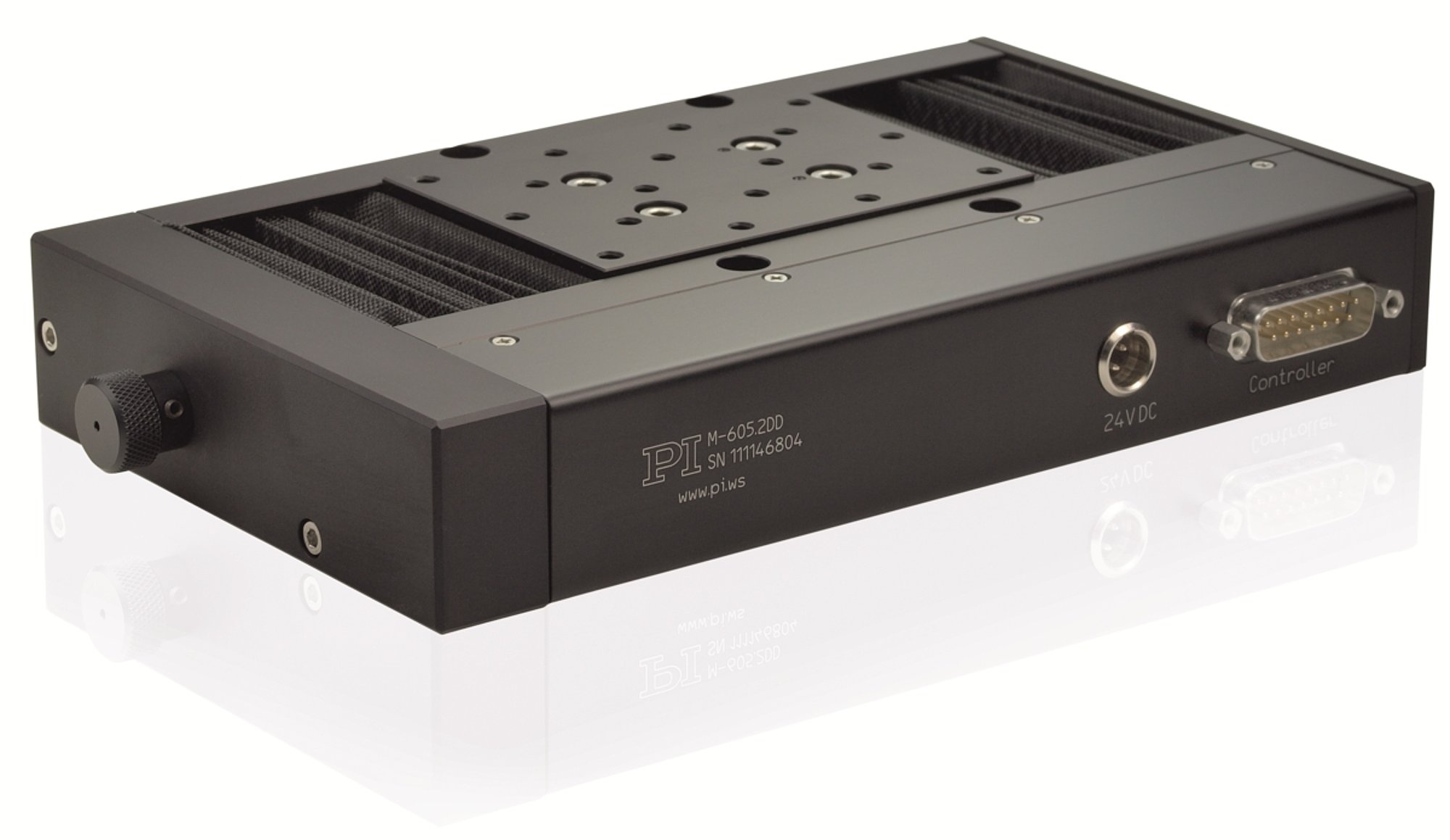

M-605.2DD Ultra-Compact, High-Accuracy Translation Stages 50 mm 0.1 µm 30.0 kg 50 mm/s 0.1 µm 0.1 µm
  Results 1 - 2 of 2 1
