High-Resolution Micro-Translation Stages

Check up to five results to perform an action.


  • 0.05 µm Minimum Incremental Motion
  • 5, 15 and 25 mm Travel Ranges
  • Velocity to 1.5 mm/sec.
  • Closed - Loop DC Motors and Stepper Motors
  • Integrated Hall - Effect Limit and Reference Switches


    Search Items



    border="0" Printable Page
    Email Email This Page
    Save To Favorites Save To Favorites

Compare Items

  Results 1 - 6 of 6 1

Item #

Item Name

Travel Range

Min. Incremental Motion

Max. Load

Max. Speed

Design Resolution

Unidirectional Repeatability

M-110.1DG High-Resolution Micro-Translation Stages 5 mm 0.05 µm 3.0 kg 1.0 mm/s 0.007 µm 0.1 µm

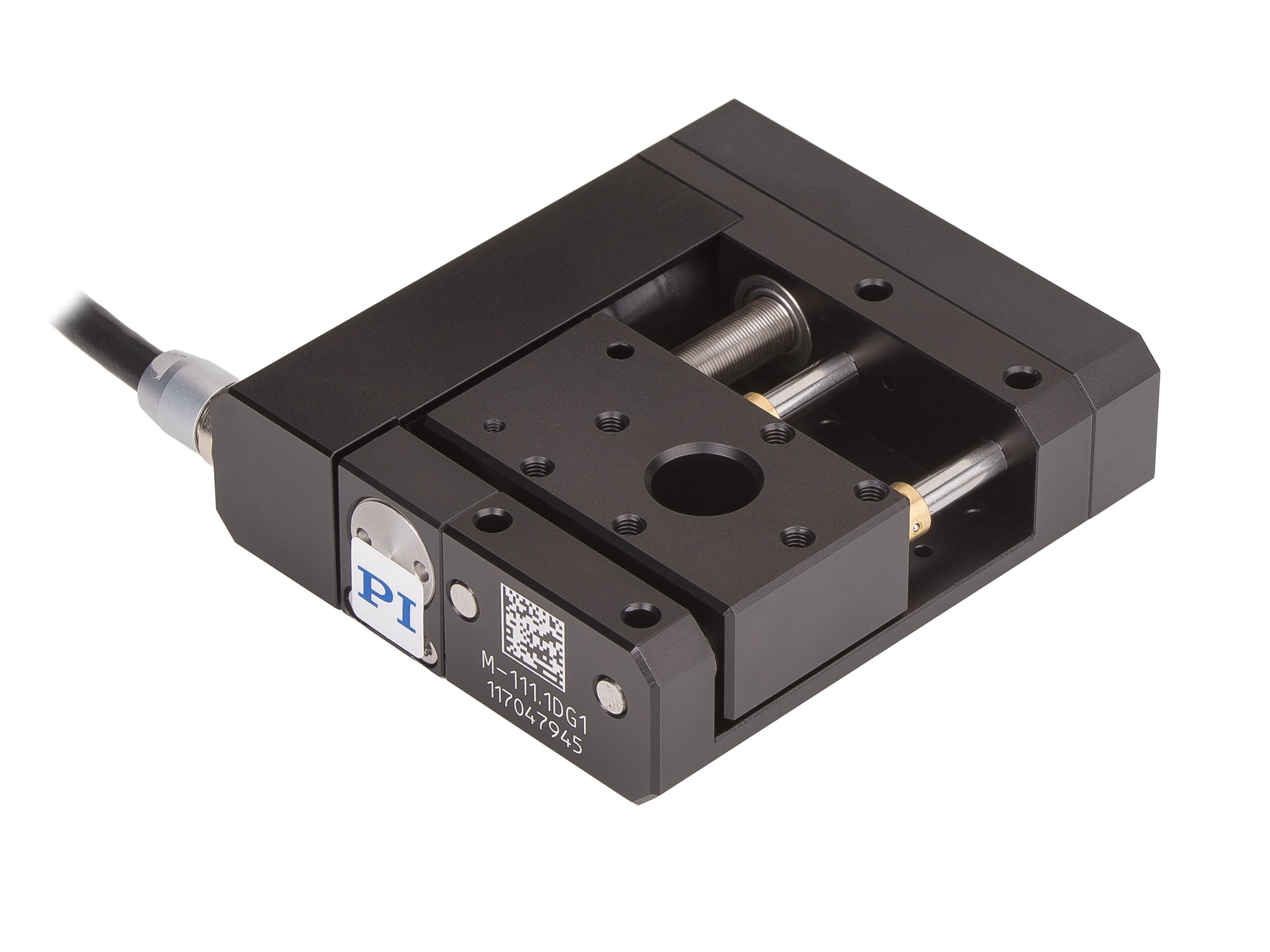

M-111.1DG High-Resolution Micro-Translation Stages 15 mm 0.05 µm 3.0 kg 1.5 mm/s 0.007 µm 0.1 µm
M-112.1DG High-Resolution Micro-Translation Stages 25 mm 0.05 µm 2.0 kg 1.5 mm/s 0.007 µm 0.1 µm
M-110.12S High-Resolution Micro-Translation Stages 5 mm 0.05 µm 3.0 kg 1.0 mm/s 0.012 µm 0.1 µm
M-111.12S High-Resolution Micro-Translation Stages 15 mm 0.05 µm 3.0 kg 1.0 mm/s 0.012 µm 0.1 µm
M-112.12S High-Resolution Micro-Translation Stages 25 mm 0.05 µm 2.0 kg 1.0 mm/s 0.012 µm 0.1 µm
