 All Categories    High-Load Vertical Micropositioning Stage
All Categories > Micropositioning:
Motorized Stages, Hexapods, Controllers
> Micropositioning Actuators / Stages > Vertical Translation Stages > High-Load Vertical Micropositioning Stage > View Items

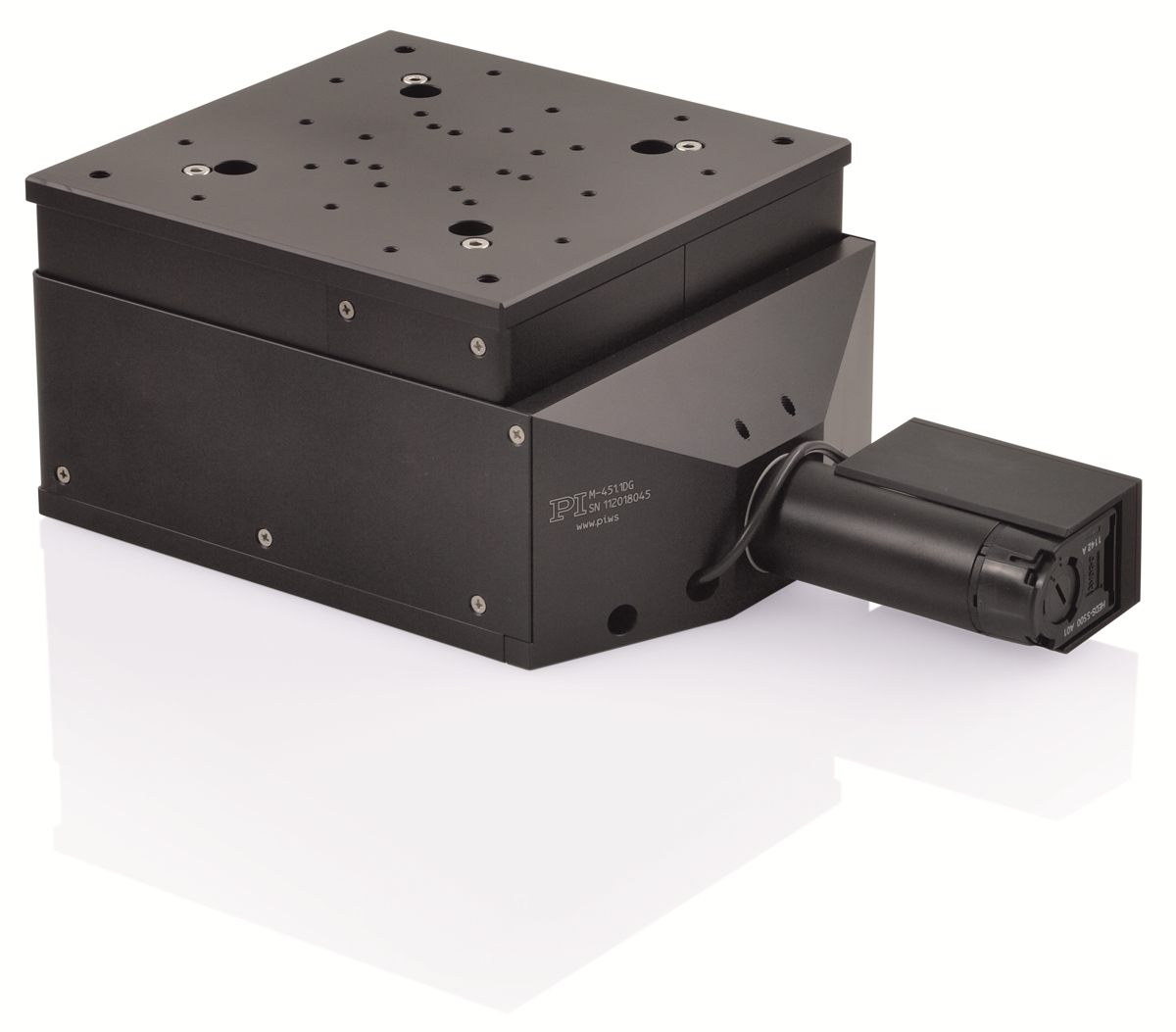

High-Load Vertical Micropositioning Stage

Check up to five results to perform an action.

  • 3 Nanometer Design Resolution
  • 12 kg Load Capacity, High Stiffness
  • <100 nm Minimum Incremental Motion
  • 12.5 mm (1/2") Travel Range
  • ActiveDrive™ Motor
  • Compatible with Leading Industrial Motion Controllers
  • Non-Contact Origin and Limit Switches
  • Mounting Platform for P-500 and PIMars™ Piezo- Nanopositioning Systems
  • Self Locking





    border="0" Printable Page
    Email Email This Page
    Save To Favorites Save To Favorites

Compare Items

  Results 1 - 3 of 3 1

Item #

Item Name

Travel Range

Max. Normal Load

Design Resolution

Min. Incremental Motion

Unidirectional Repeatability

Max. Speed

M-451.1PD High-Load Vertical Micropositioning Stage 12.5 µm 120 N 0.042 µm 0.2 µm 0.3 µm 3.0 mm/s
M-451.1DG High-Load Vertical Micropositioning Stage 12.5 µm 120 N 0.0028 µm 0.1 µm 0.3 µm 0.5 mm/s
M-451.12S High-Load Vertical Micropositioning Stage 12.5 µm 120 N 0.0084 µm 0.2 µm 0.3 µm 0.8 mm/s
  Results 1 - 3 of 3 1
