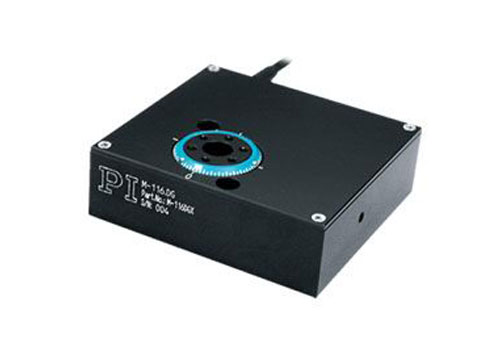

Micro Rotation Stages with Worm Gear Drive

Check up to five results to perform an action.


  • Ultra-Compact Design
  • Continuous Rotation
  • 2.5 µrad Design Resolution
  • Clear Aperture
  • Velocity up to 20 degrees/second
  • Preloaded Anti-Backlash Worm Drive
  • Fits Directly on M-110 Micro Translation Stages
  • Compatible with Leading Industrial Motion Controllers
  • Non-Contact Reference Switch
  • Up to 10 µrad Repeatability




    border="0" Printable Page
    Email Email This Page
    Save To Favorites Save To Favorites

Compare Items

  Results 1 - 4 of 4 1

Item #

Item Name

Design Resolution

Min. Incremental Motion

Unidirectional Repeatability

Max. Axial Force

Max. Speed

Rotation Range

M-116.DG Micro Rotation Stages with Worm Gear Drive 2.45 µrad (0.00014°) 50 µrad 12 µrad 15 N 20 °/s 360 °
M-116.DGH Micro Rotation Stages with Worm Gear Drive 3.16 µrad (0.00018°) 25 µrad 10 µrad 15 N 20 °/s 360 °
M-116.2S Micro Rotation Stages with Worm Gear Drive 4.18 µrad (0.00024°) 50 µrad 12 µrad 15 N 20 °/s 360 °
M-116.2SH Micro Rotation Stages with Worm Gear Drive 5.40 µrad (0.00031°) 25 µrad 10 µrad 15 N 20 °/s 360 °
  Results 1 - 4 of 4 1
