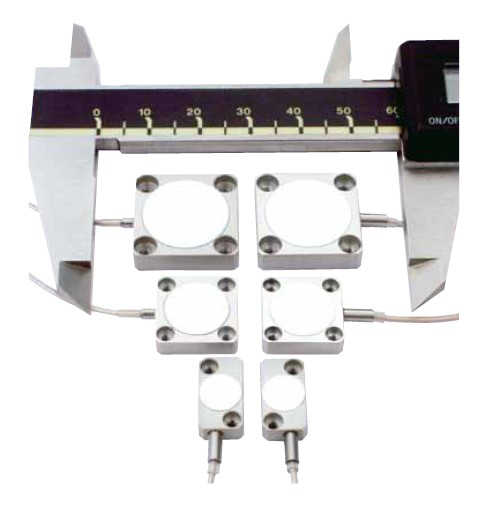

Sub-Nanometer-Resolution Capacitive Position Sensors

Check up to five results to perform an action.

  • Measuring Range to 1000 µm
  • Resolution <0.01 nm
  • Linearity to 0.003 %
  • Bandwidth to 10 kHz
  • Integrated Linearization System (ILS)
  • Custom Designs





    border="0" Printable Page
    Email Email This Page
    Save To Favorites Save To Favorites

Compare Items

  Results 1 - 4 of 4 1

Item #

Item Name

Power Supply

Analog Output

Noise Factor

Temperature Drift (typ.)

Nominal Measuring Distance

E-509.CxA Capacitive Sensor Electronics ±15 V ±5 V (0V - 10V) 0.115 ppm/√Hz -30 ppm/K N/A
D-015.00 Capacitive Sensors N/A N/A N/A N/A 15 µm
D-050.00 Capacitive Sensors N/A N/A N/A N/A 50 µm
D-100.00 Capacitive Sensors N/A N/A N/A N/A 100 µm
  Results 1 - 4 of 4 1
