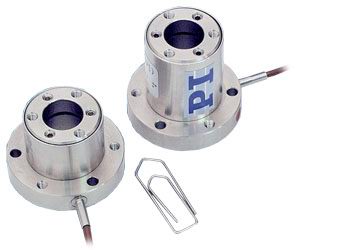

High-Speed Multi-Axis Tip/Tilt Platforms and Z Positioners

Check up to five results to perform an action.

  • 10 mm Clear Aperture
  • Piezo Tripod Design Allows Z Motion and Tilt
  • Up to 2.4 mrad Optical Beam Deflection
  • Piston Movement up to 12 µm
  • Closed-Loop Versions for Better Linearity
  • For Optics, Mirrors or Other Components
  • Zero Friction Guiding Mechanism
  • Single-Moving-Platform, Parallel-Kinematics Design : Equal Dynamics for all Axes, Better Linearity & Temperature Stability




    border="0" Printable Page
    Email Email This Page
    Save To Favorites Save To Favorites

Compare Items

  Results 1 - 5 of 5 1

Item #

Item Name

Active Axes

Closed Loop Resolution

Closed Loop Tilt Angle

Unloaded Resonant Frequency

Open Loop Linear Travel at 0 to 100 V

Integrated Feedback Sensor

Open Loop Linear Resolution

Stiffness (Z)

S-310.10 High-Speed Multi-Axis Tip/Tilt Platforms and Z Positioners Z N/A N/A 9.50 kHz 6 µm ±20% N/A N/A 20 N/µm ±20%
S-314.10 High-Speed Multi-Axis Tip/Tilt Platforms and Z Positioners Z N/A N/A 5.50 kHz 12 µm ±20% N/A N/A 10 N/µm ±20%
S-311.10 High-Speed Multi-Axis Tip/Tilt Platforms and Z Positioners Z
θX

θY
N/A N/A 9.50 kHz 6 µm ±20% N/A 0.01 µrad 20 N/µm ±20%
S-315.10 High-Speed Multi-Axis Tip/Tilt Platforms and Z Positioners Z
θX

θY
N/A N/A 5.50 kHz 12 µm ±20% N/A 0.02 µrad 10 N/µm ±20%
S-316.10 High-Speed Multi-Axis Tip/Tilt Platforms and Z Positioners Z
θX

θY
0.40 nm 1.2 mrad 5.50 kHz 12 µm ±20% 3 x Strain gauge 0.02 µrad 10 N/µm ±20%
